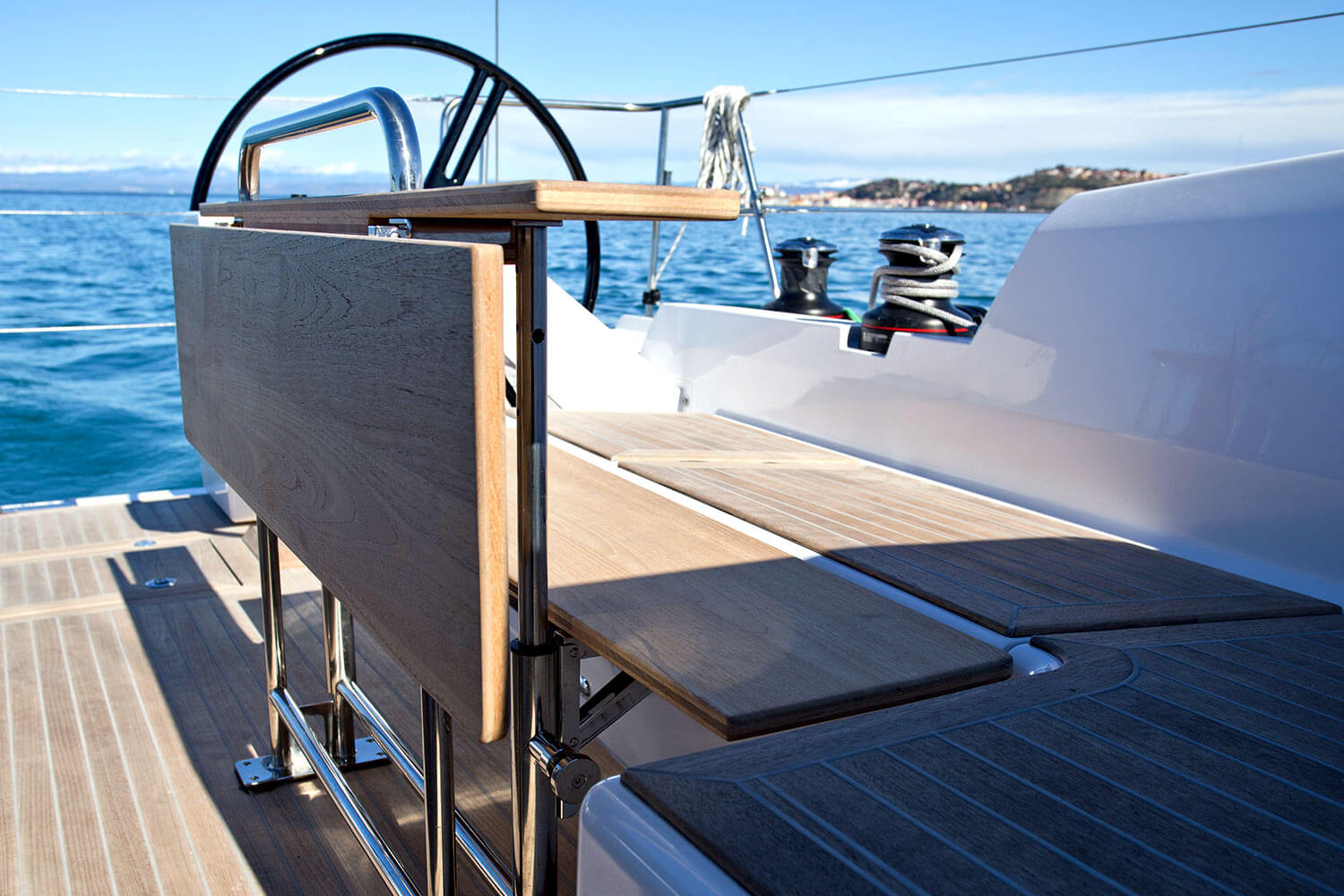

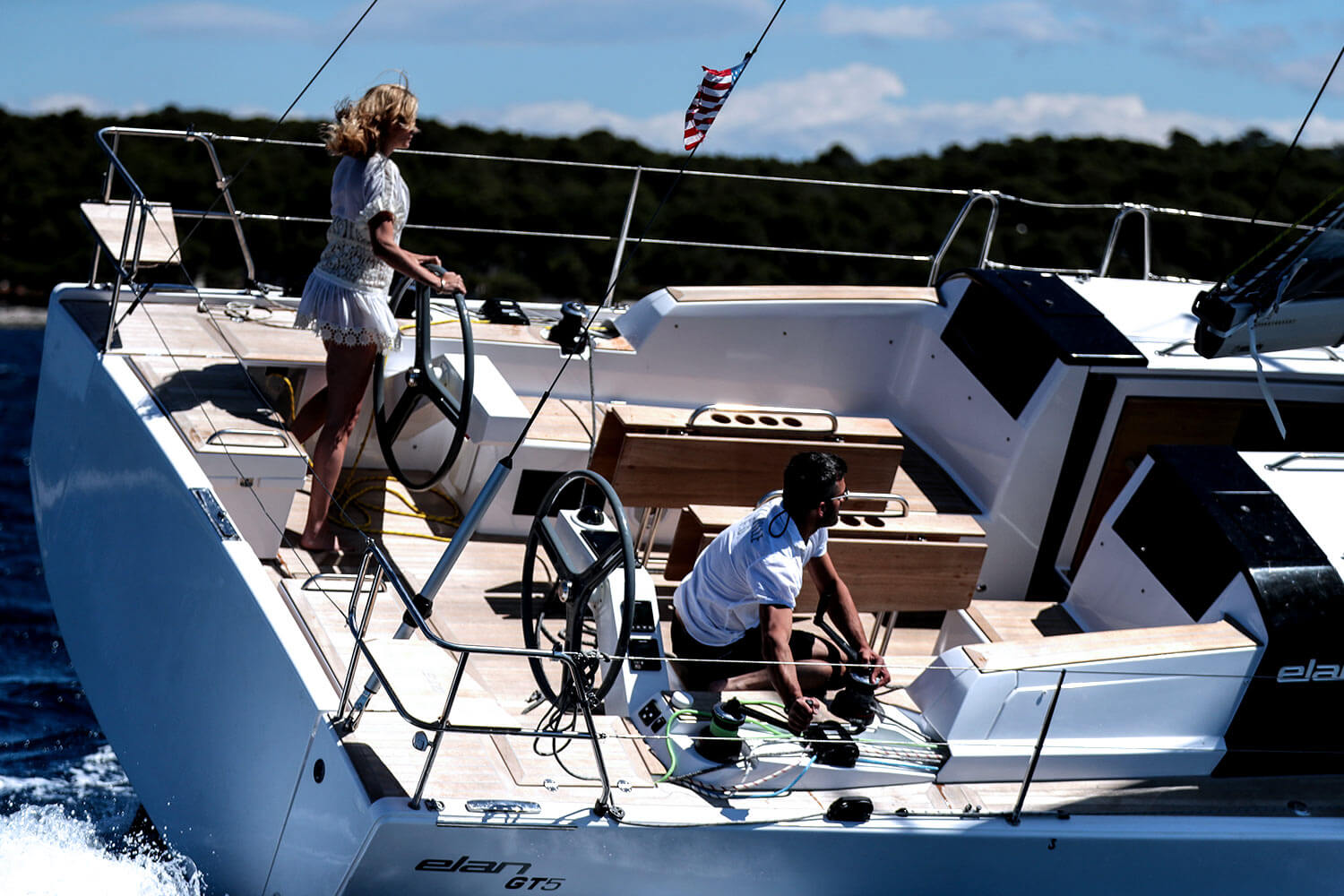

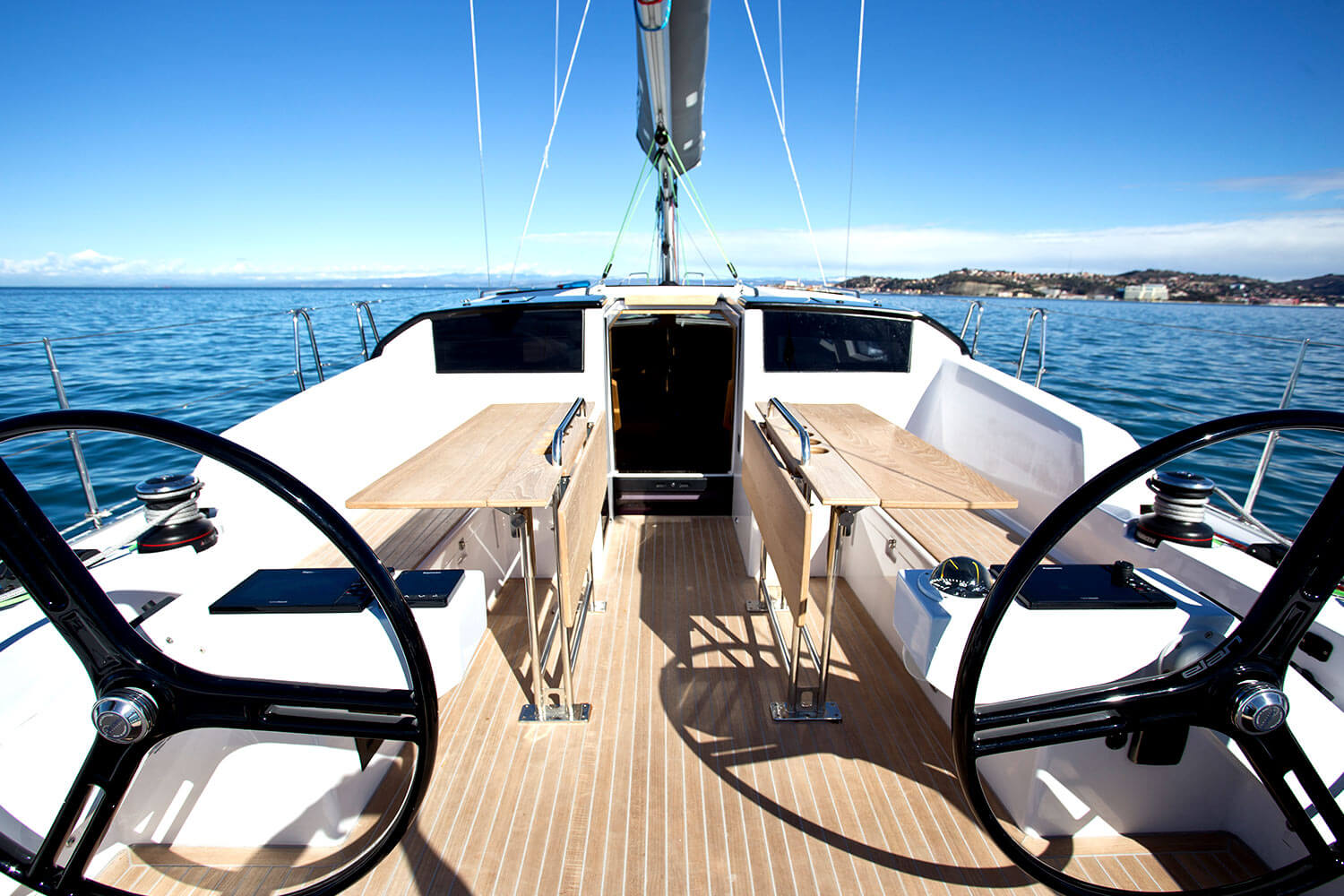

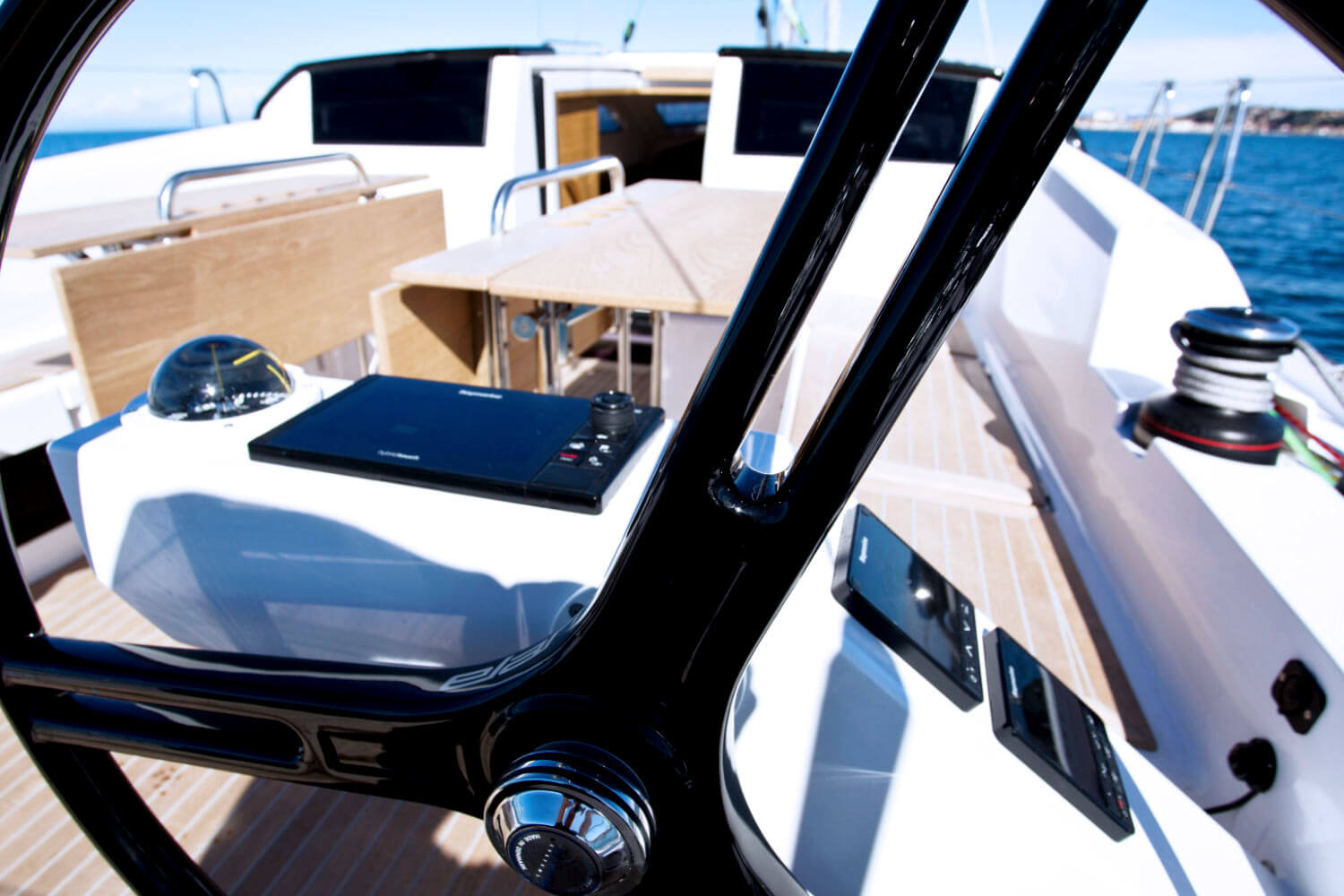

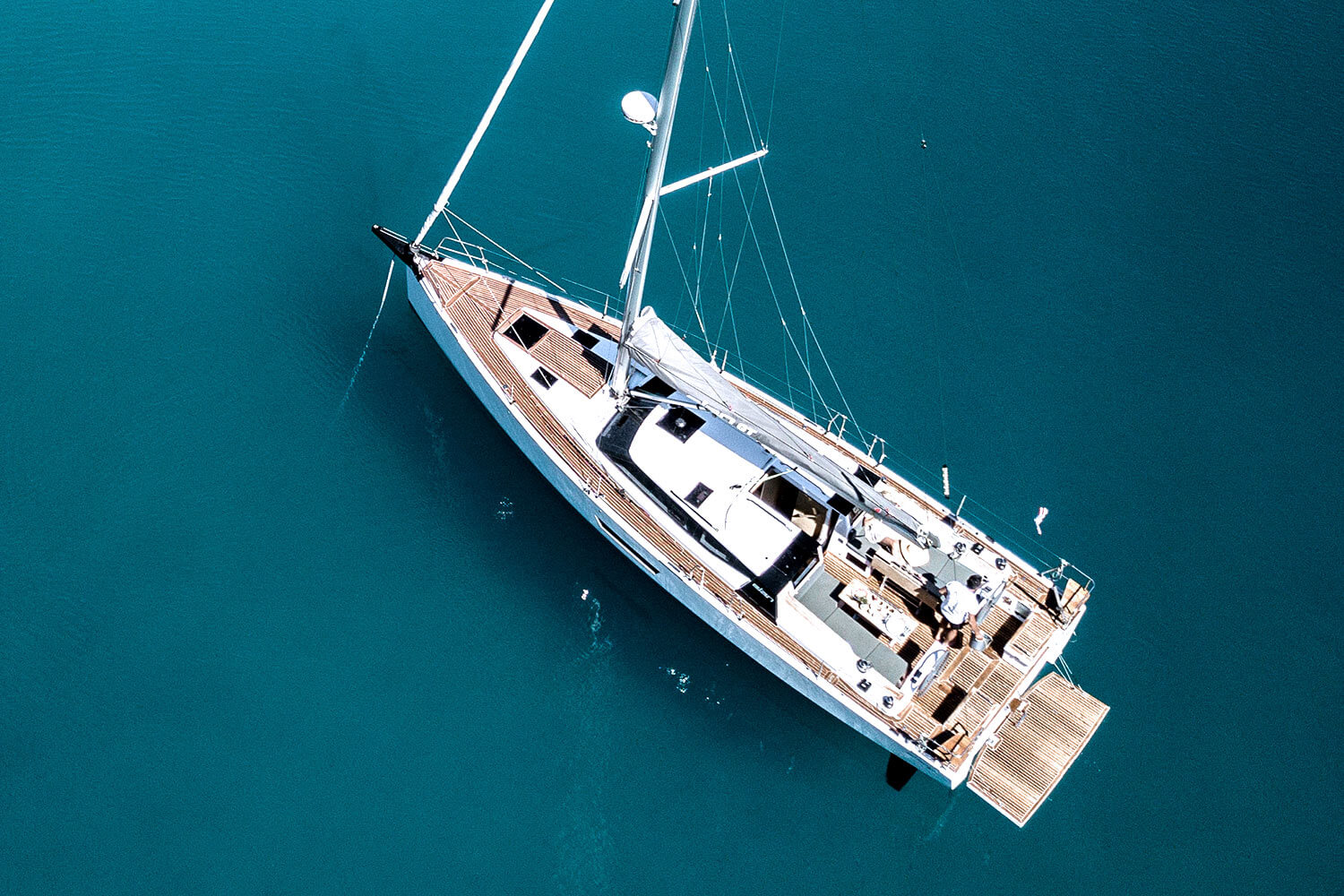

GT5 cockpit is designed for enjoying time with family and friends
Interior

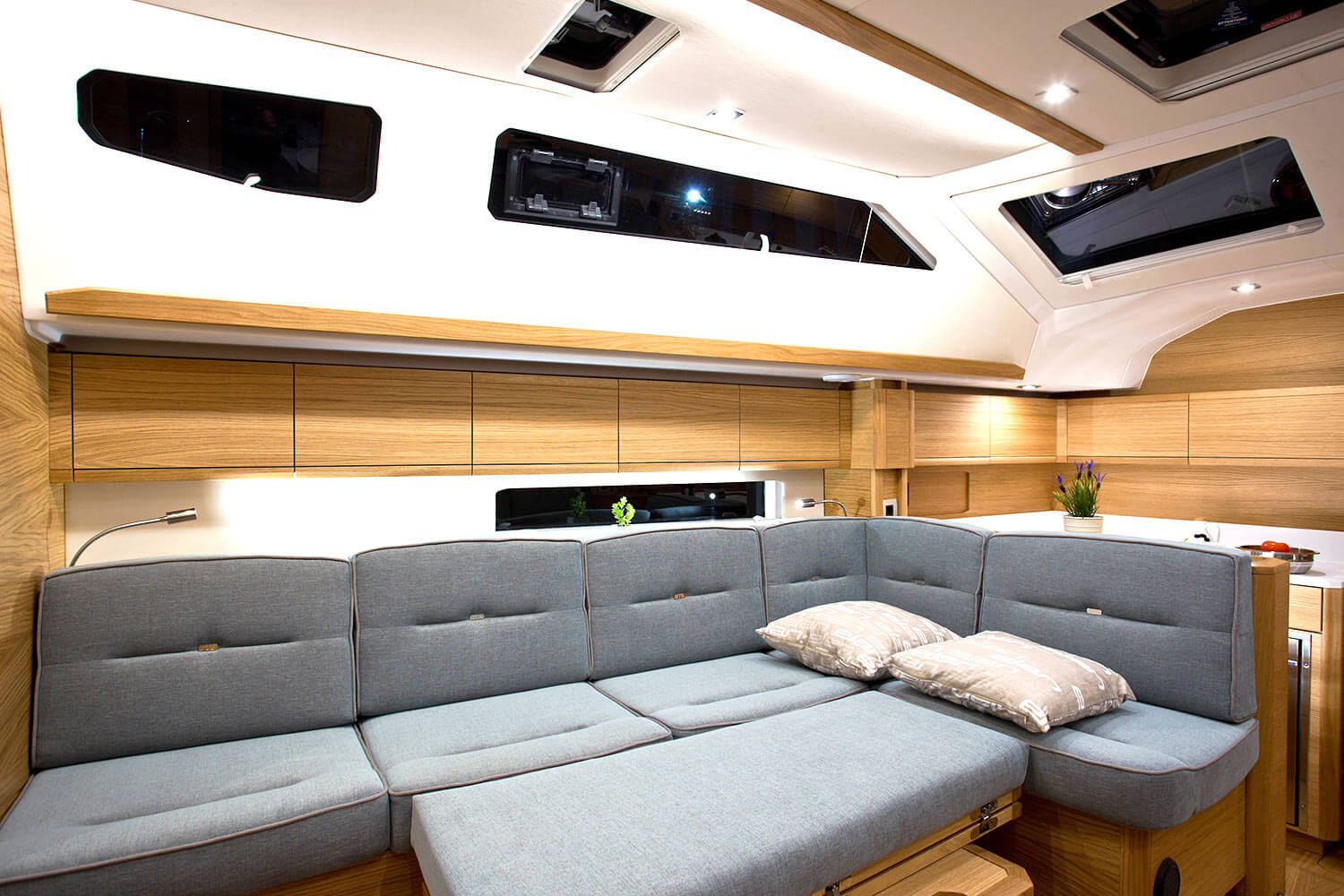

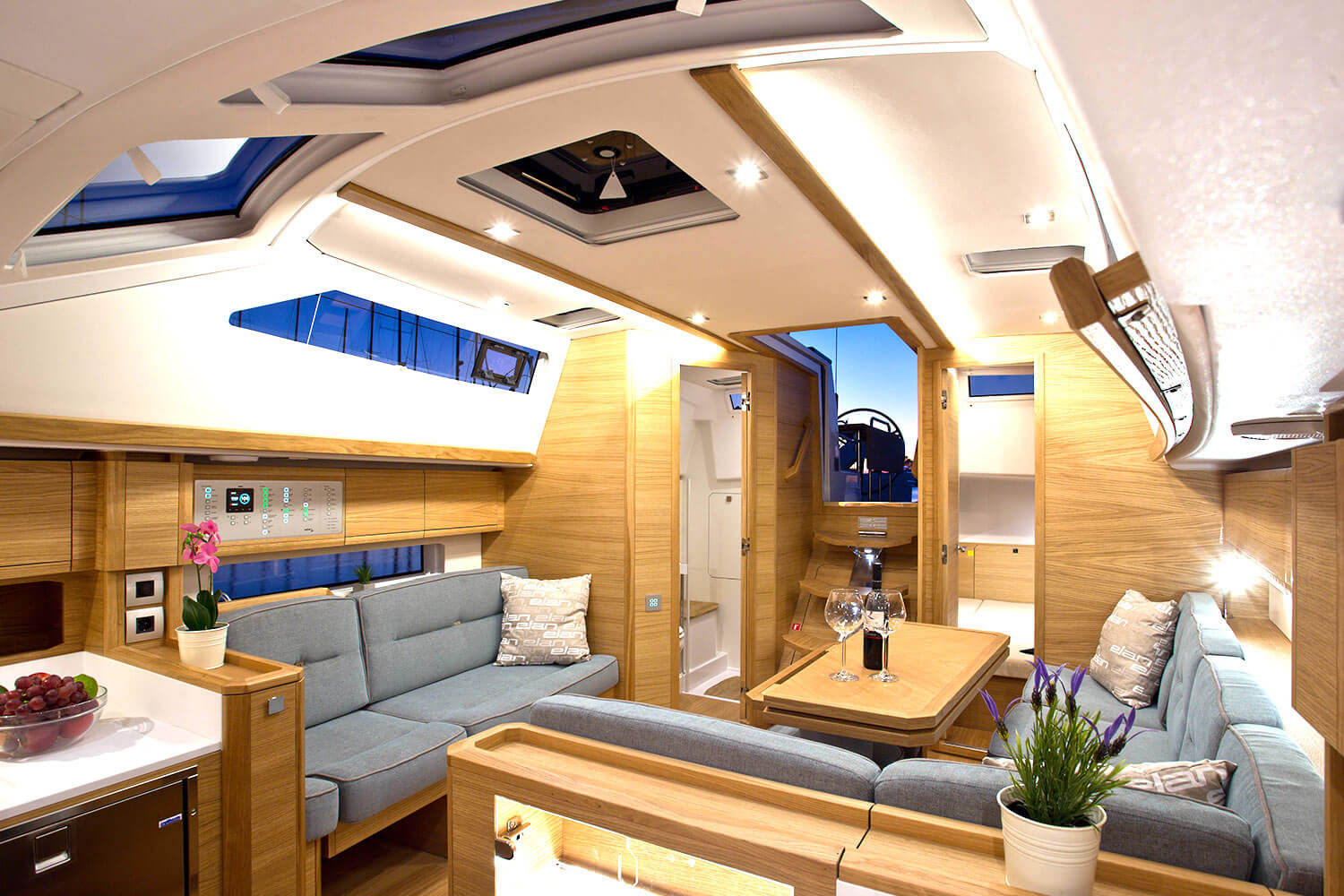

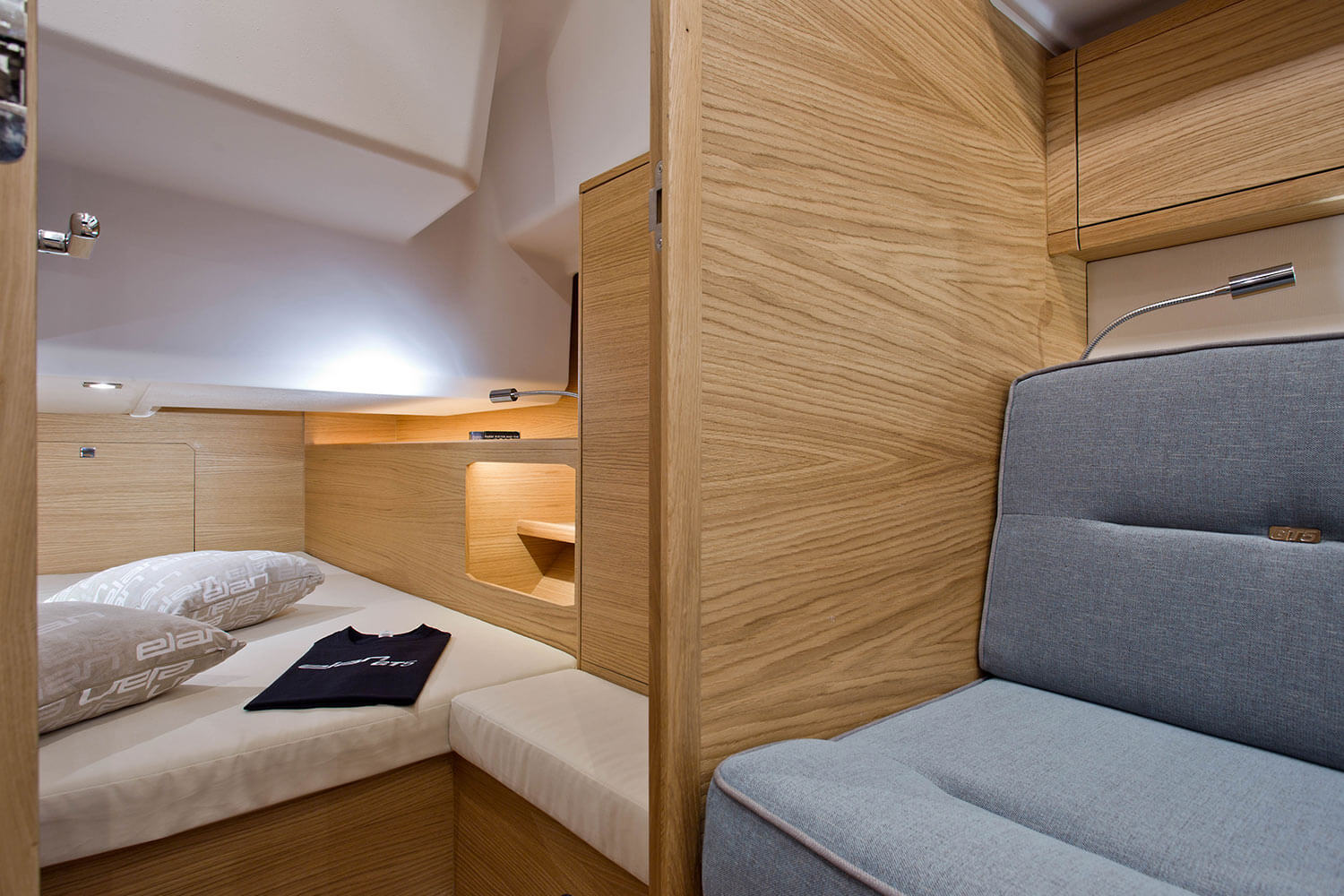

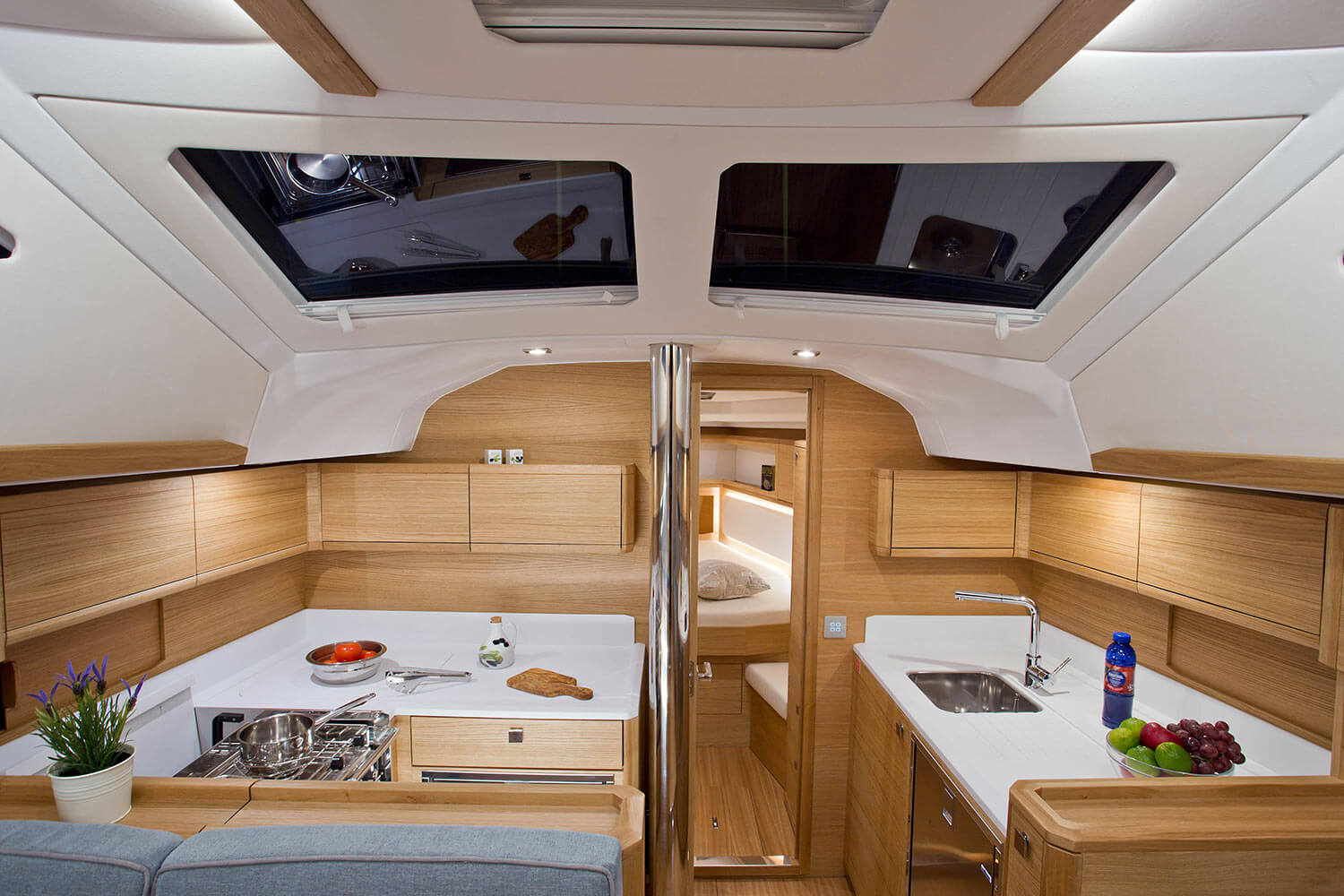

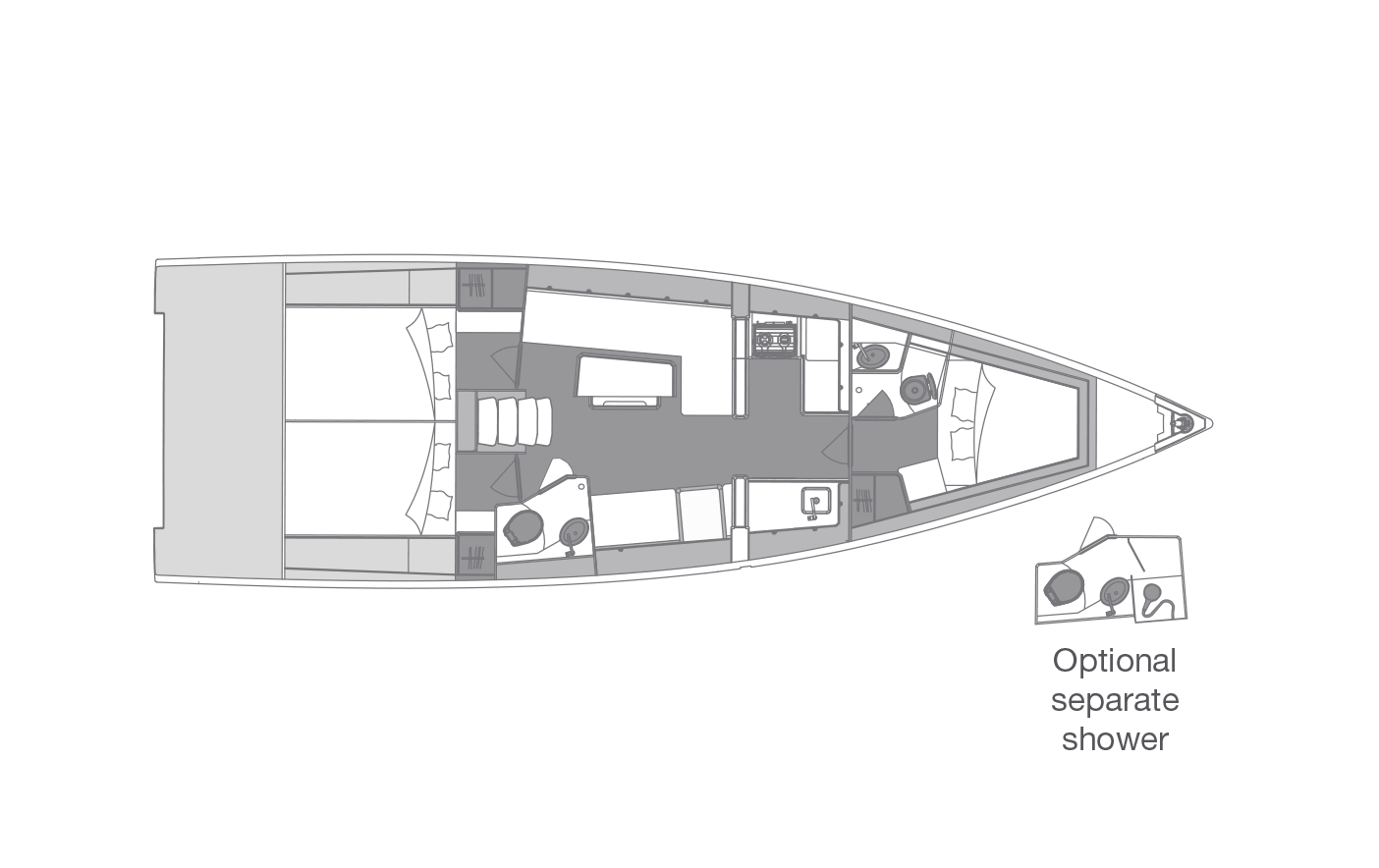

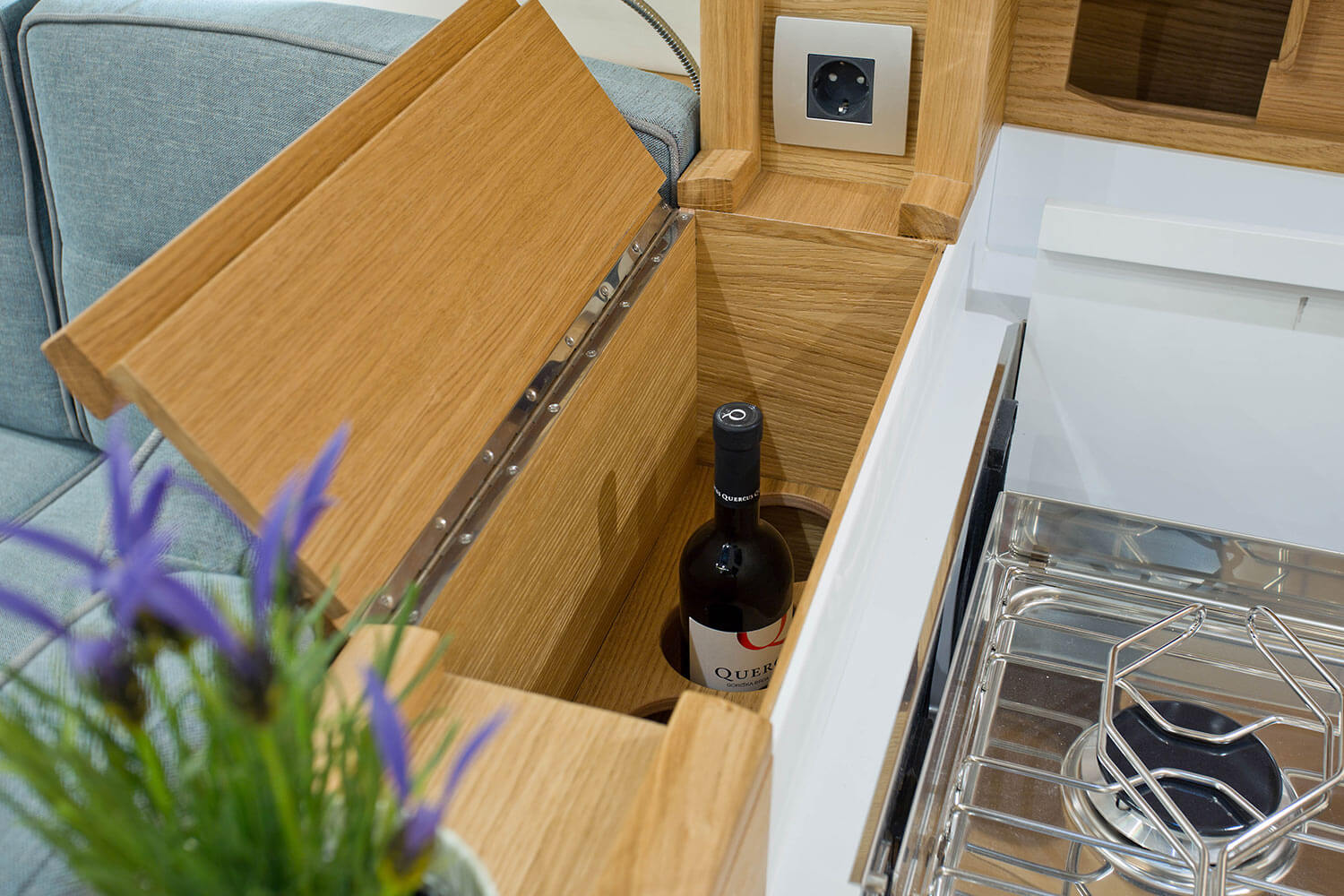

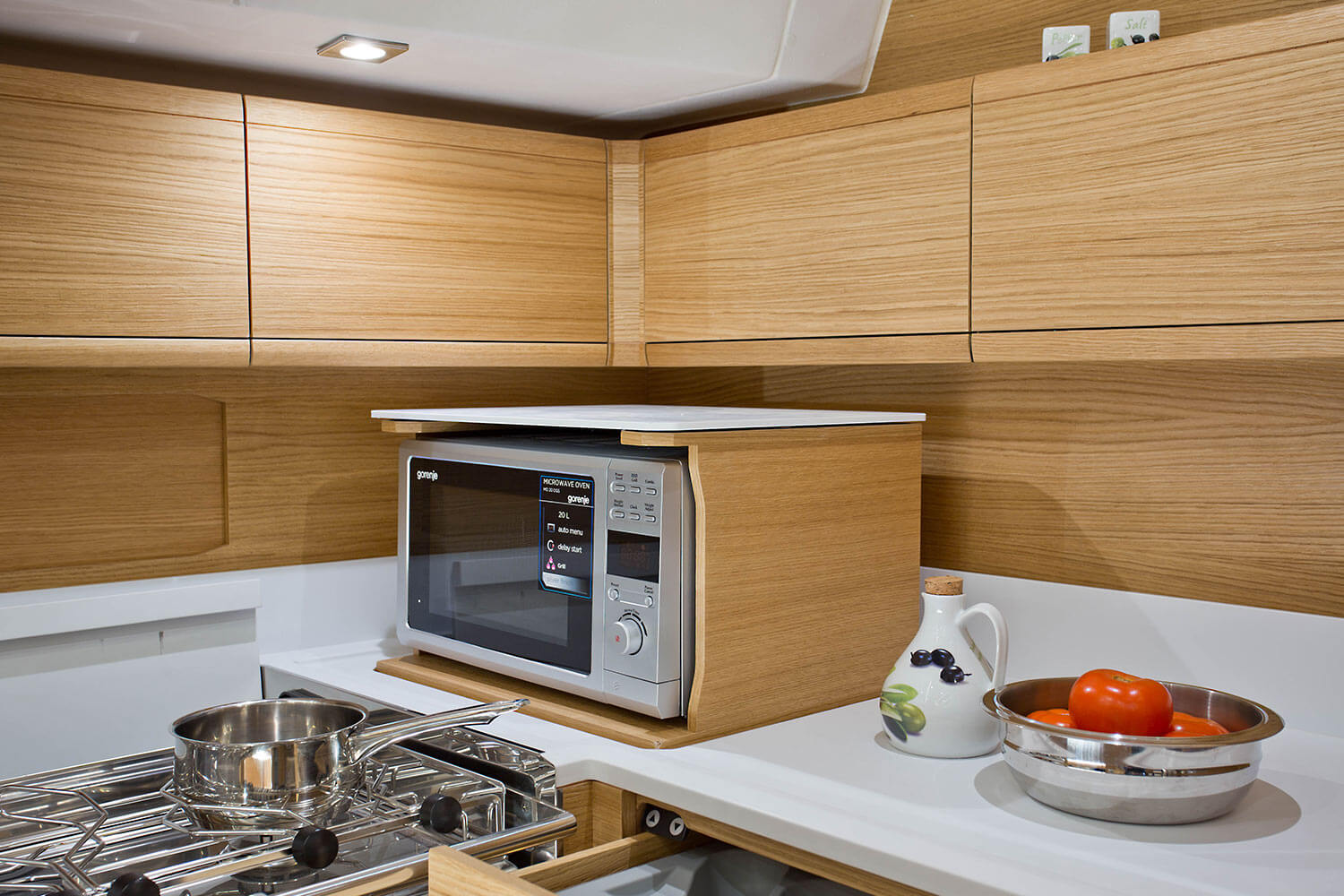

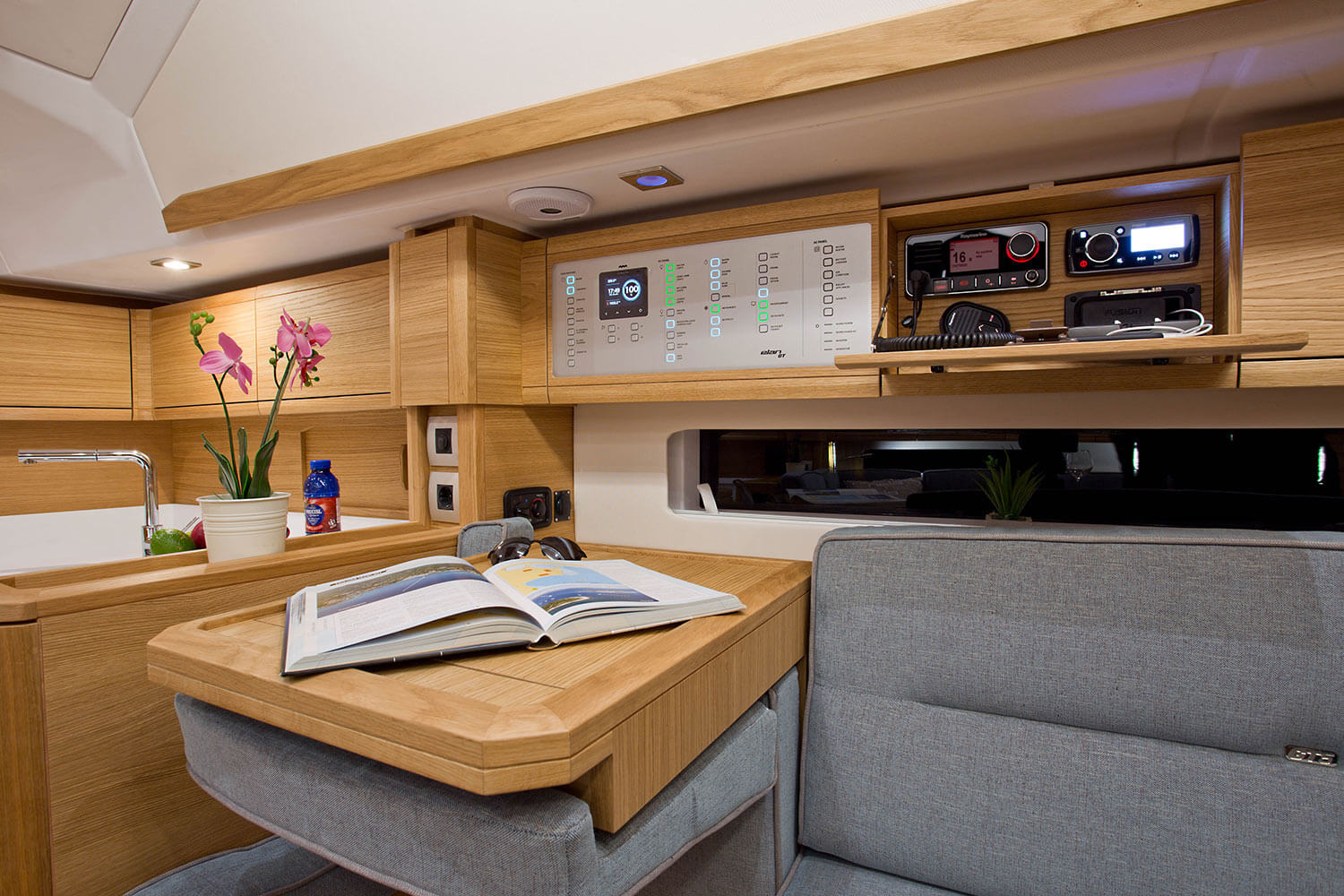

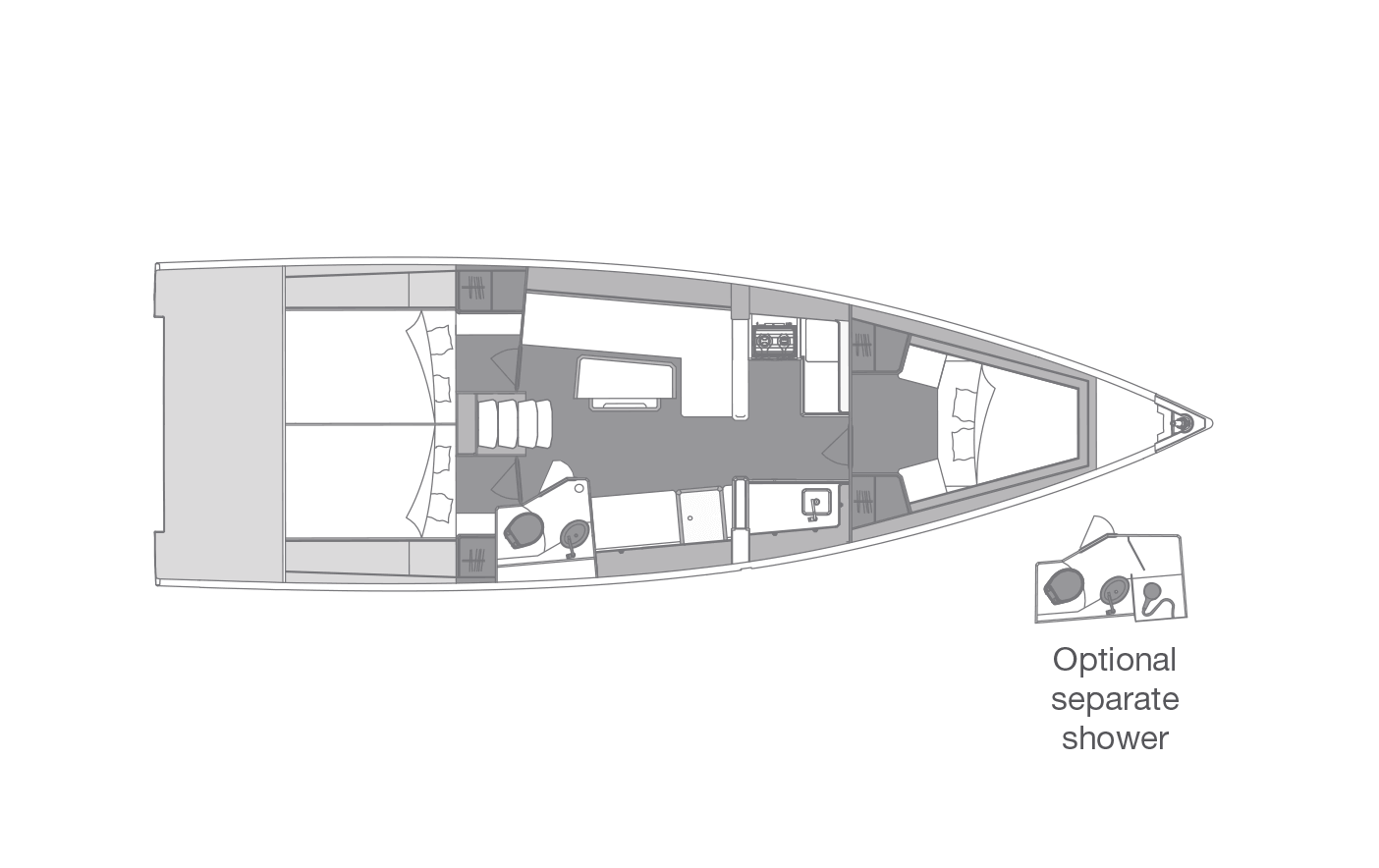

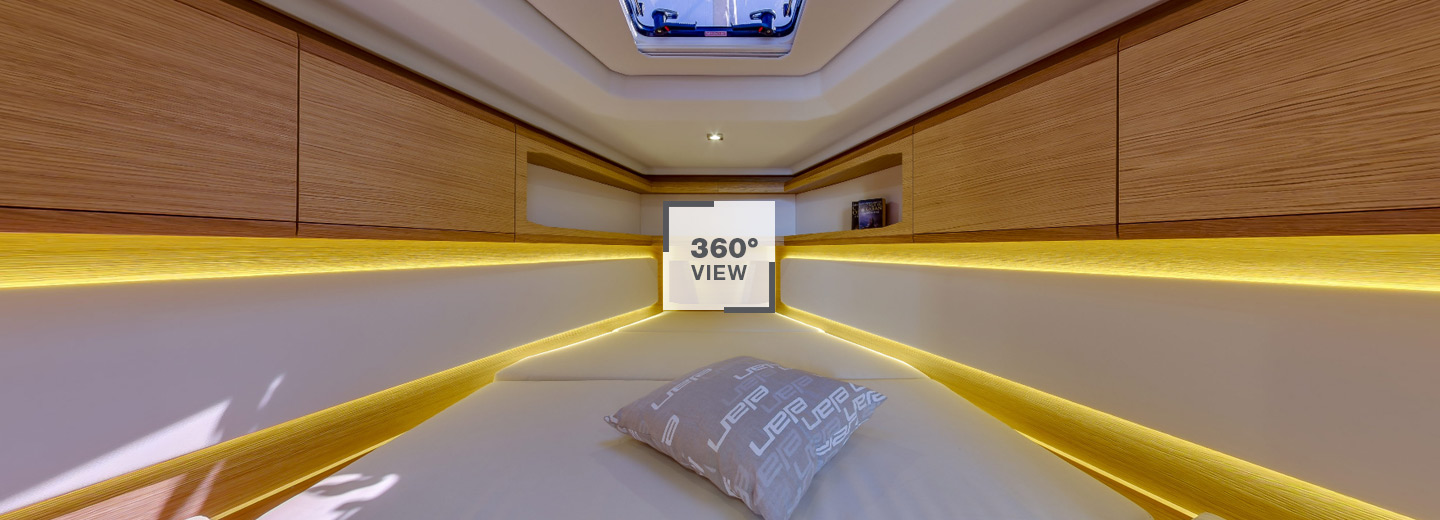

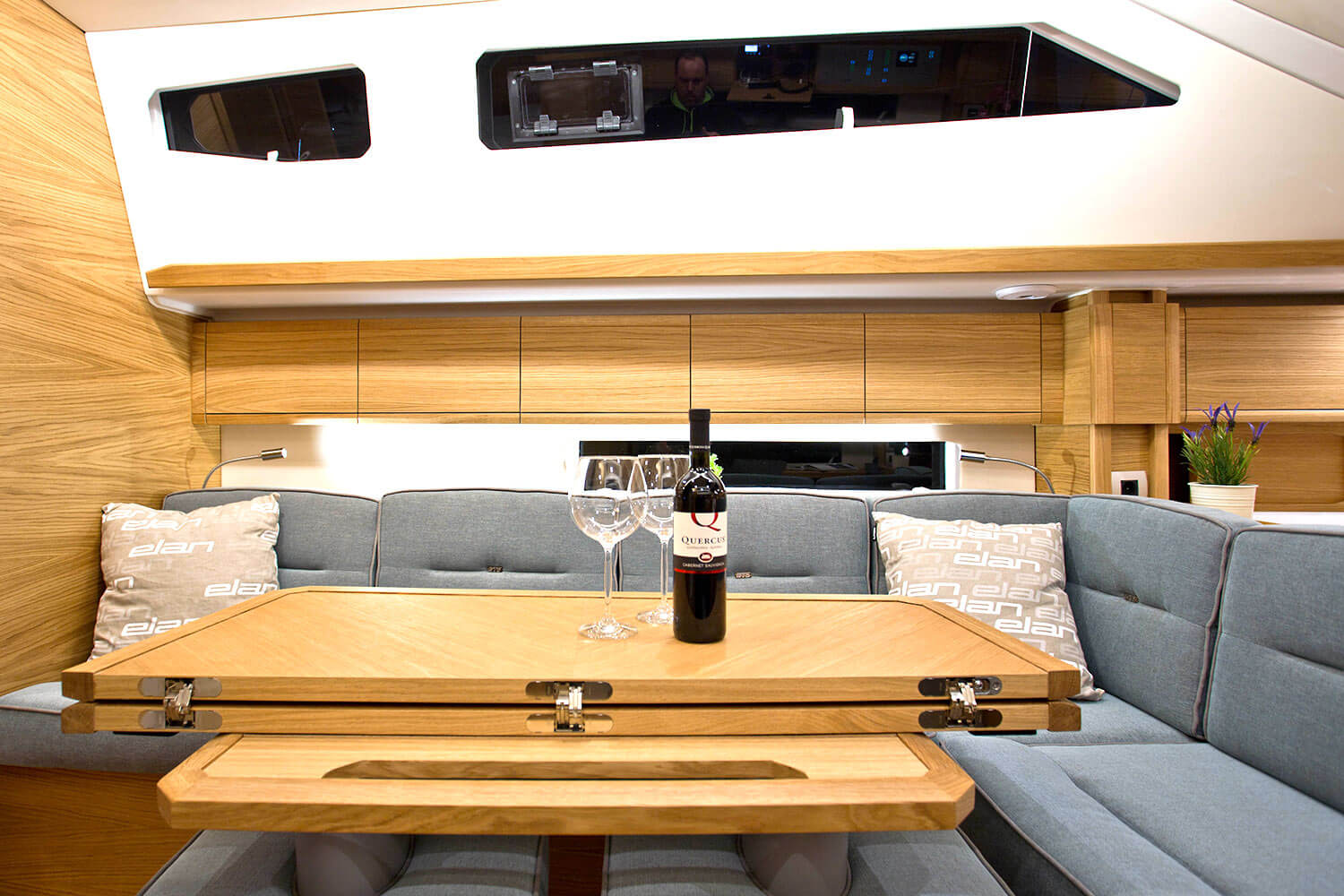

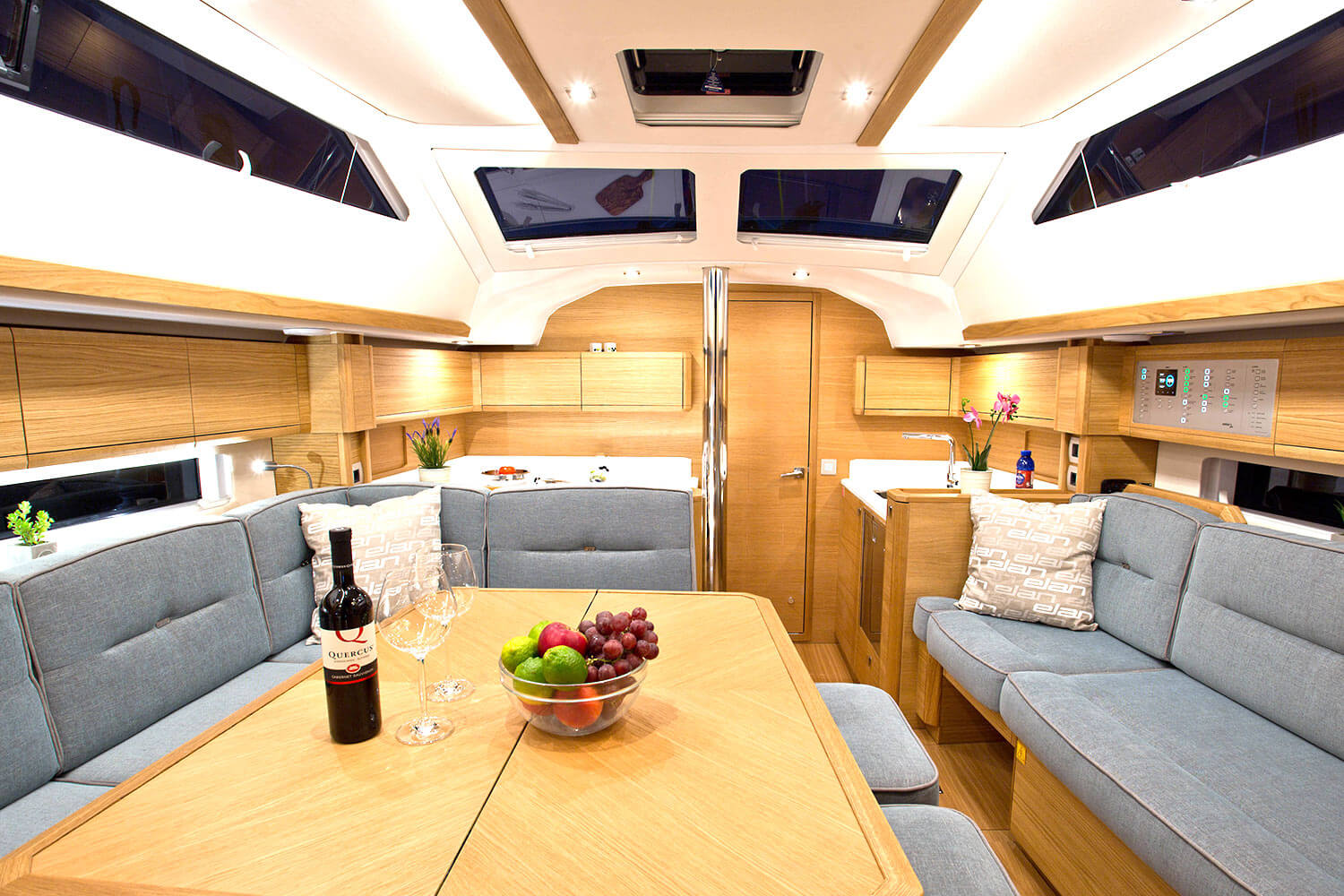

The space below deck is unique in her class. The Elan Design Team has implemented an inverted saloon layout featuring the galley forward, ensuring optimal utilisation of the yacht’s volume for the most comfortable and innovative saloon in her size range. The galley forward offers ample storage space with a customisable corner to be equipped individually for each owner. The 180-degree panoramic skylight with the window in window feature, two hatches and one large central hatch allows the saloon to be ventilated at all times. The new GT5 is also the only yacht this size to offer a separate shower compartment with a 3-cabin, 2-heads interior layout.

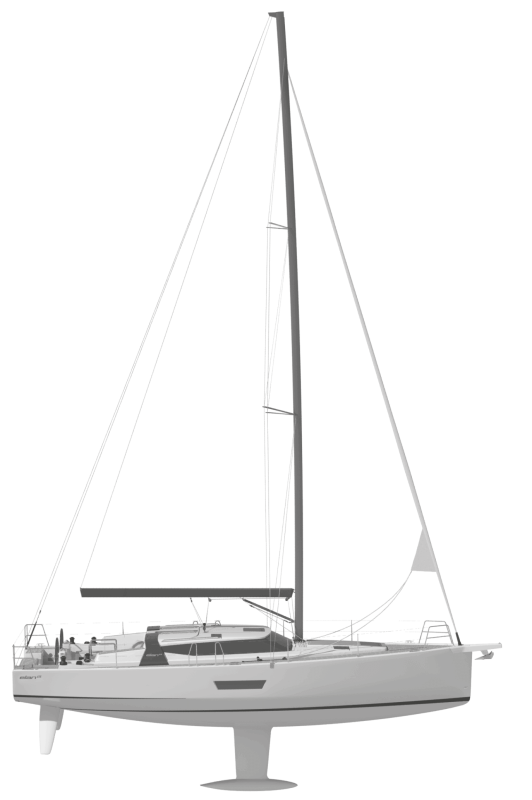

Technical Specification
| Length Overall | 13,20 m | 43’4’’ ft |
| Hull length | 12,41 m | 40’9’’ ft |
| Length at waterline | 11,58 m | 38’0’’ ft |
| Beam | 3,91 m | 12’10’’ ft |
| Draft (standard) | 2,25 m | 7’4’’ ft / 2,45 m | 8’0’’ ft / 1,95 m | 6’5’’ ft |
| Draft (option) | 2,45 m | 8’0’’ ft |
| Light displacement | 8.650 kg | 19,070 lbs |
| Ballast | 2.655 kg | 5,855 lbs |
| Water capacity (standard) | 220 l | 58 US gal |
| Water capacity (option) | 490 l | 129 US gal |
| Fuel capacity | 146 l | 39 US gal |
| Engine (standard) | 37.0 kW | 50 HP Volvo Penta |
| Engine (option) | 42.5 kW | 57 HP Yanmar |
| Air draft | 18,39 m | 60’4’’ ft |
| Mainsail | 44,60 m2 | 480’1’’ sq ft |
| Jib | 34,20 m2 | 368’10’’ sq ft |
| Asymetric | 135 m2 | 1453’1’’ sq ft |
| I | 15,25 m | 50’0’’ ft |
| J | 4,275 m | 14’0’’ ft |
| P | 14,85 m | 48’9’’ ft |
| E | 5,3 m | 17’5’’ ft |

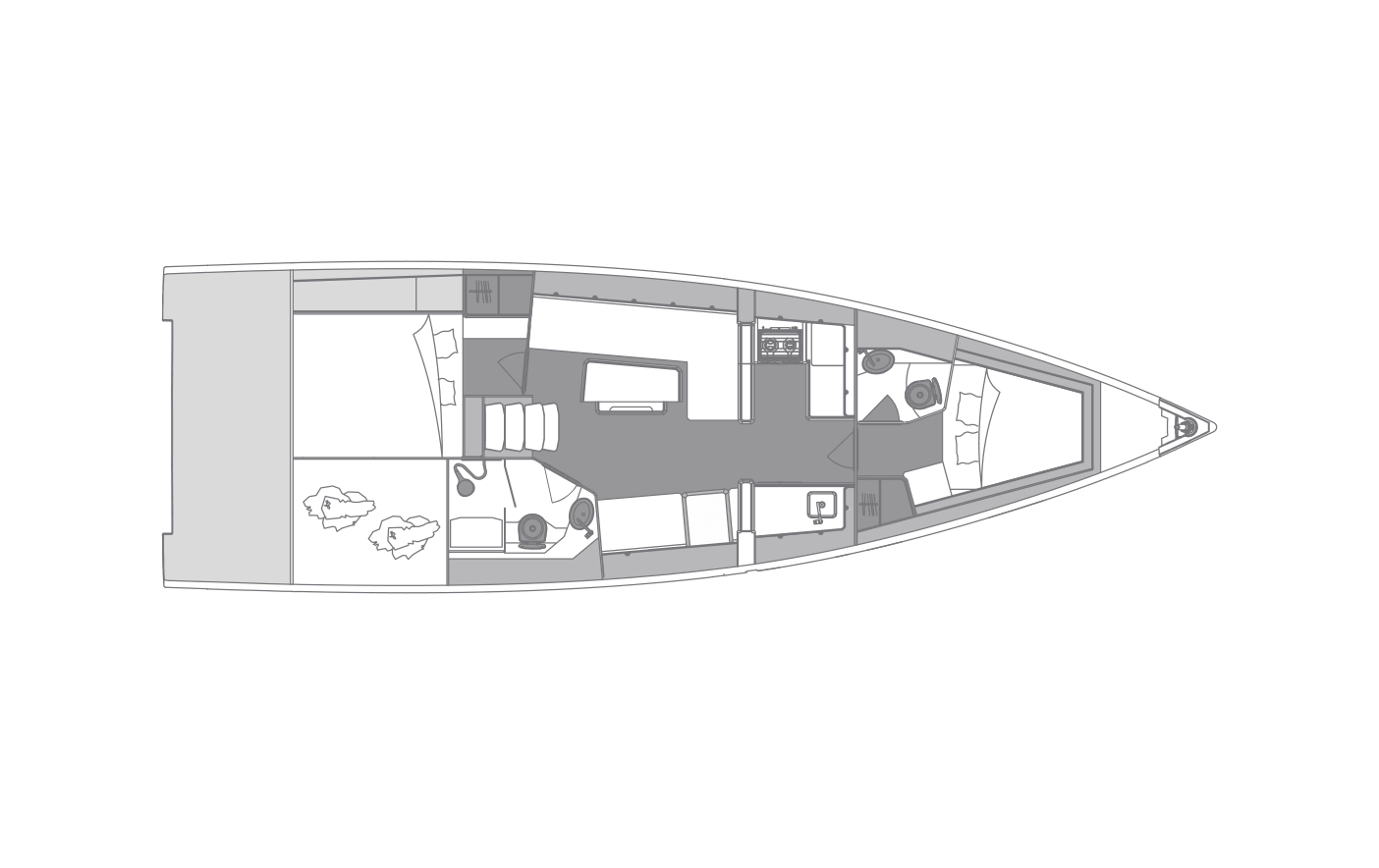

STANDARD
OPTIONAL

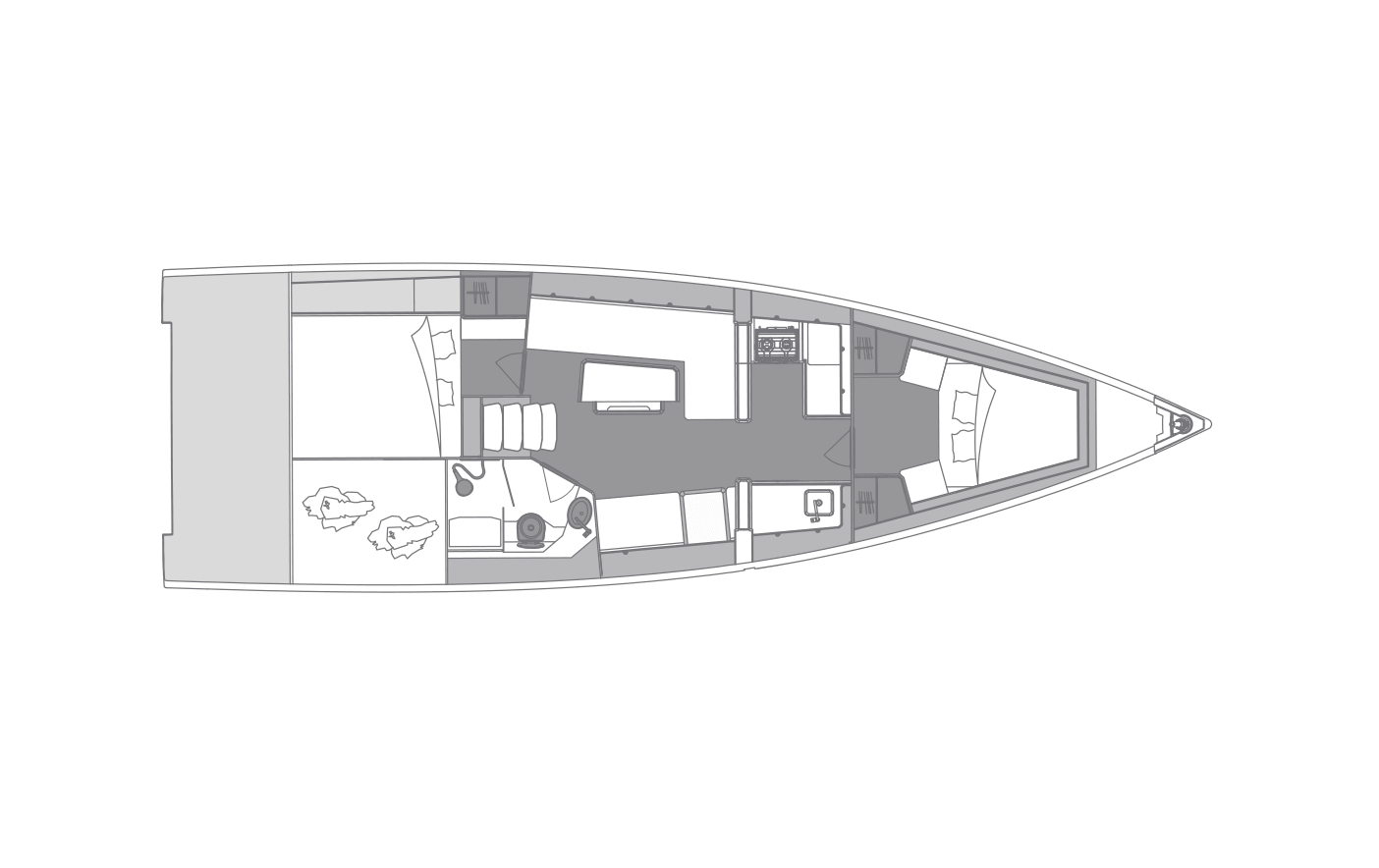

Standard
Option 2
Option 3
Option 4
